Expansion Joints

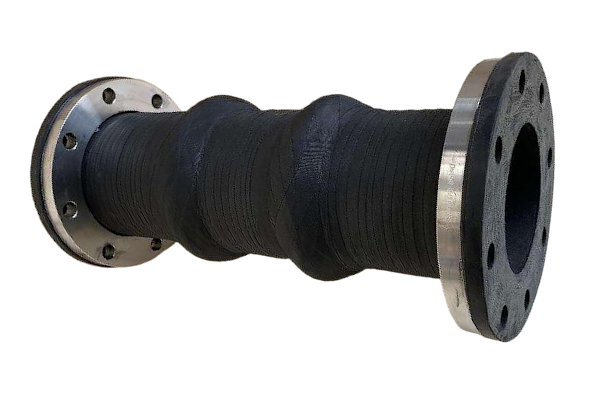

•   Do you offer rubber expansion joints equipped with tie rods and lugs, and how should I decide whether to choose a restrained (with tie rods and lugs) or an unrestrained configuration for my application?

  At Ocelflex, our rubber expansion joints are available in both restrained and unrestrained configurations. Restrained rubber expansion joints feature tie rods and lugs—collectively known as a control unit—that limit the joint’s movement to its design parameters. This controlled motion enhances durability, safety, and overall system performance by preventing excessive displacement and misalignment. For smaller diameter joints, control units are typically provided in sets of two, with the number of sets increasing proportionally with the joint diameter. This design ensures that every rubber expansion joint performs reliably under varying operational conditions.

•   How do rubber expansion joints accommodate various movement types? Are they effective for vibration absorption, and can they also withstand torsional stress?

  Rubber expansion joints are engineered to effectively accommodate axial, lateral, and angular movements. Although they can absorb torsional stresses, prolonged torsional movement is not recommended as it may lead to material fatigue over time. In addition to movement compensation, these joints play a crucial role in isolating vibrations and dampening sound transmission, ensuring a quieter and more stable operational environment. Their vibration reduction capabilities are particularly valuable in applications such as HVAC systems, industrial pipelines, and processing plants, where minimizing noise and maintaining structural integrity are critical. This robust design makes rubber expansion joints an ideal solution for a variety of dynamic industrial applications.

•   What are the distinct advantages of using rubber expansion joints in industrial systems?

  Rubber expansion joints offer a host of benefits for various industrial applications :

    Multi-Directional Flexibility: Rubber Joints enable easy movement in axial, lateral, and angular directions, preventing system damage and accommodating thermal expansion.

    Vibration & Noise Reduction: These expansion joint's inherent flexibility isolates vibrations and dampens sound transmission, contributing to a quieter, more stable operating environment.

    High Abrasion & Corrosion Resistance: Manufactured using a wide range of durable rubber grades, these joints resist abrasion and corrosion, making them compatible with diverse media including chemicals, oils, and gases.

    Ease of Installation: Lightweight and flexible, rubber expansion joints simplify installation. Ocelflex models come with built-in or split flanges, eliminating the need for gaskets and reducing installation time.

    Extended Fatigue Life & Compact Design: Non Metallic Expansion Joint offer long fatigue life and a minimal end-to-end length without compromising on movement capabilities, enhancing system reliability and reducing maintenance costs.

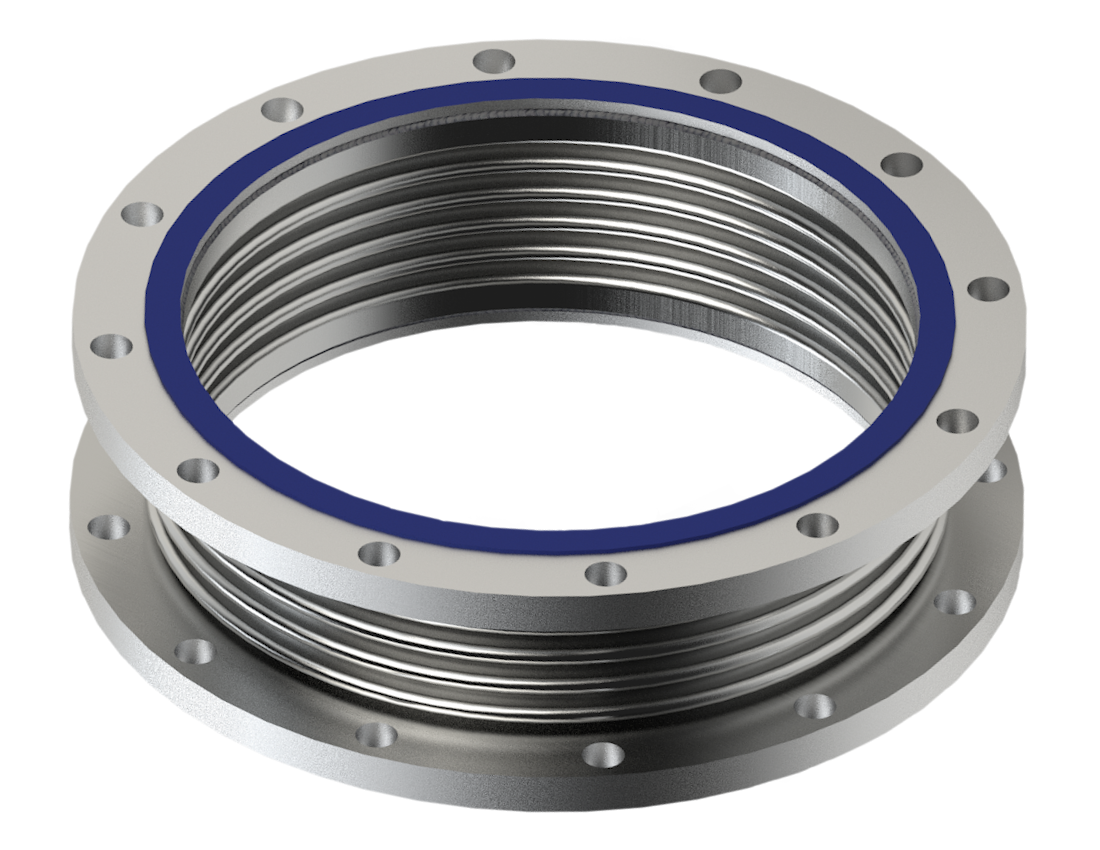

•   How can the lifespan of a stainless steel expansion joint be extended?

In an ideal scenario, a metal expansion joint will function effectively until it reaches its fatigue life cycle. However, with proper care and maintenance, its lifespan can be extended well beyond that point. Key steps include:

    1. Routine Inspection & Maintenance:
        • Regularly check for signs of wear, fatigue, or corrosion to detect issues early.
        • Cleaning and removing of residual media accumulation or any external substance which can cause corrosion and damage to operation.
        • Refer to our detailed inspection and maintenance guidelines for best practices.

    2. Correct Installation
        • Ocelflex emphasizes proper installation techniques and recommends that installation is supervised by trained personnel.
        • Ensuring correct alignment and adequate support minimizes undue stress and mechanical strain.
        • For detailed installation instruction, refer to our Expansion Joint's Installation Manual which we provide with our shipment.

    3. Material Selection
        • Opt for high-quality, corrosion-resistant materials such as stainless steel, duplex alloys, or Inconel, particularly in harsh operating environments.

    4. Protective Measures
        • Apply suitable protective coatings or linings to shield the joint from chemical exposure, rusting and thermal stress.

    5. Operational Management
        • Keep system parameters within design limits to prevent overextension and unexpected thermal expansion.

By following these practices, you can optimize the performance and extend the lifespan of metal expansion joints, ensuring reliable and efficient operation in demanding industrial conditions.

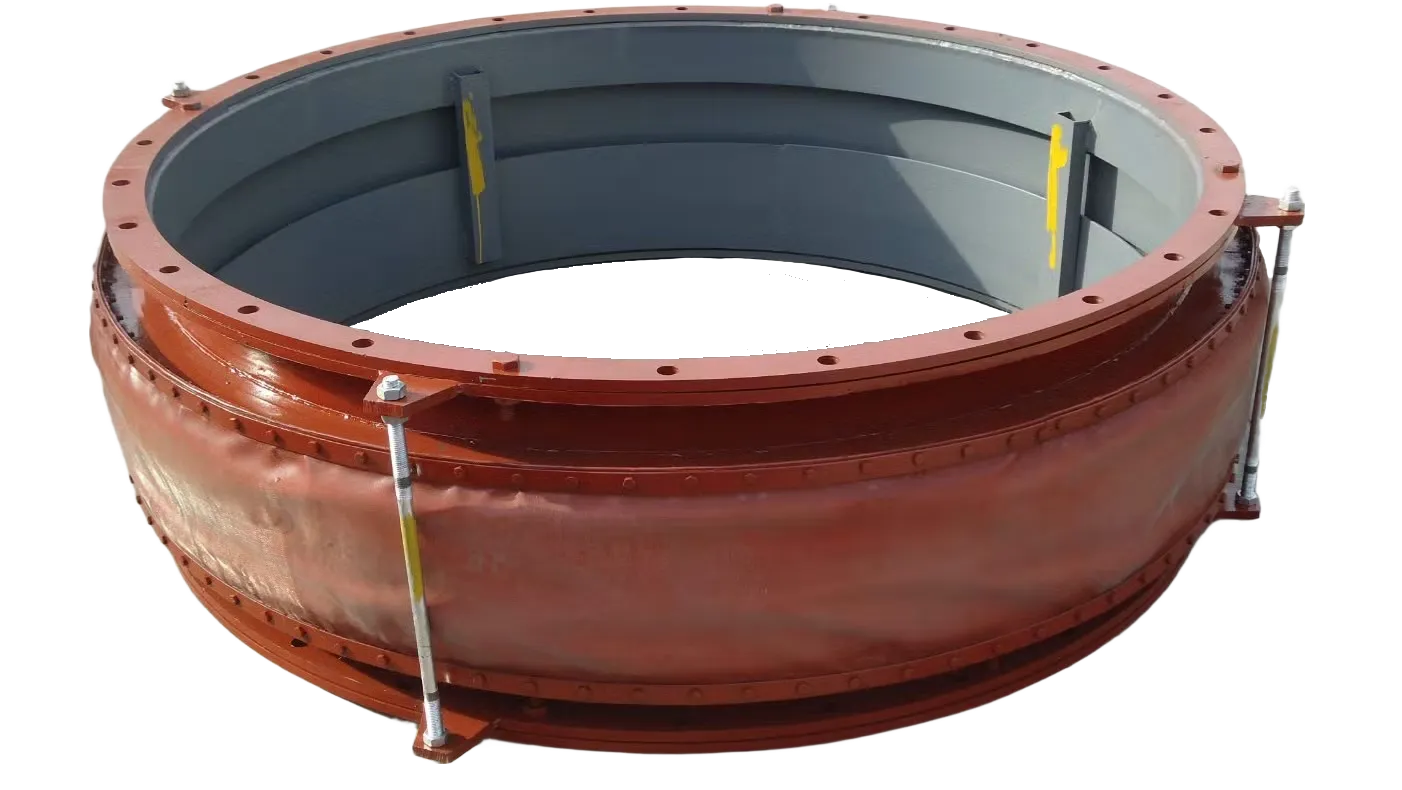

•   What is the one unique feature of fabric expansion joints?

    The standout feature of fabric expansion joints is their remarkable flexibility paired with a lightweight design. This unique characteristic allows them to efficiently absorb significant thermal and mechanical movements, making them ideal for complex ductwork, high-temperature exhaust systems, and advanced HVAC applications.

•   What is the shelf life of fabric expansion joints?

    Fabric expansion joints typically have a shelf life of 4 to 6 years when stored under optimal conditions. Ocelflex suggests that maintaining a cool, dry, and UV-protected environment is crucial to preserving the integrity of the fabric materials. Environmental factors such as temperature fluctuations, corrosive environment, humidity, and prolonged UV exposure can accelerate aging and reduce the effective shelf life.

•   Which among fabric expansion joints, rubber expansion joints, and metal expansion joints are best suited for absorbing vibrations and noise?

    Rubber and fabric expansion joints are specifically engineered to absorb vibrations and dampen noise. Their non-metallic, elastomeric layers make them ideal for protecting sensitive equipment from vibration-induced wear, ensuring smoother and quieter operation overall. In contrast, metal expansion joints are primarily designed to accommodate thermal expansion in high-temperature, high-pressure, and mechanically stressed environments. Although metal expansion joints can absorb some vibrations and noise, they are less effective for these purposes compared to rubber and fabric options.
