•   What are Limit Rods, and how do they differ from Tie Rods?

Limit rods and tie rods are both restraint components used in metal expansion joint assemblies, but they perform very different engineering functions. At Ocelflex, understanding this distinction is important because improper specification can severely affect piping system performance and safety.

Tie rods are designed to absorb the full pressure thrust generated inside the expansion joint. They mechanically restrain the assembly and prevent overall axial movement. This allows the piping system to operate without requiring massive main anchors to absorb pressure loads. Tie rod designs are commonly used in unanchored piping systems where pressure thrust restraint is essential.

Limit rods, however, are designed to permit controlled movement within a predefined range. They typically include adjustable heavy-duty nuts positioned with a specific gap between the hardware and flange. During normal operation, the expansion joint can freely compress or extend within this allowable travel range.

If excessive movement occurs due to pressure surges, anchor failure, or unexpected thermal growth, the rods engage mechanically and prevent overextension of the bellows. In essence, limit rods act as safety restraints, while tie rods act as full pressure-thrust restraints. Both are critical components when properly engineered for the application.

•   When is Universal metal expansion joint used?

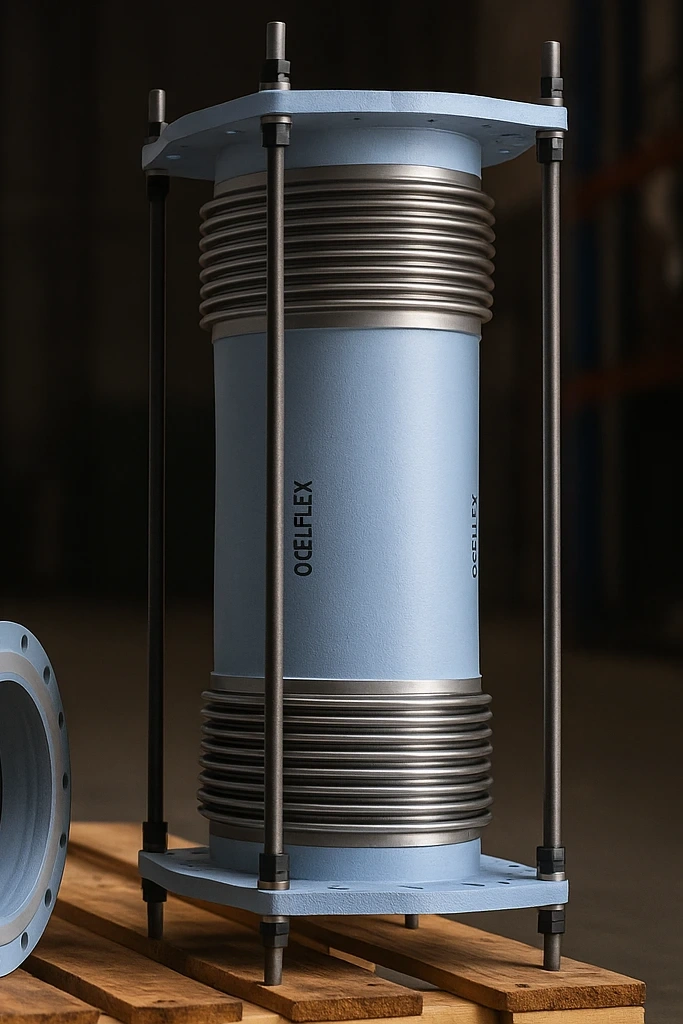

A universal metal expansion joint is primarily used when a piping system must absorb significant lateral movement or offset that cannot be safely handled by a single bellows assembly. At Ocelflex, universal expansion joints are commonly engineered for long pipeline systems, turbine connections, process plants, and industrial utility networks where thermal growth occurs in multiple directions.

A standard single bellows expansion joint is highly efficient for axial compression and extension but has limited capability for large lateral deflection. Excessive side movement can distort the convolutions, create uneven stress distribution, and dramatically reduce fatigue life.

A universal expansion joint solves this problem by incorporating two bellows sections separated by a center spool pipe. This geometry allows the center section to pivot and translate laterally while distributing movement between both bellows elements. As a result, the assembly can absorb much larger lateral offsets with significantly lower stress.

Universal expansion joints are especially beneficial in long piping runs where thermal expansion cannot be directed linearly. When combined with proper anchors and pipe guides, they provide excellent flexibility, vibration isolation, and long-term reliability in complex industrial piping systems.

•   What happens if abrasive slurries get trapped inside the bellows?

Abrasive slurry service is one of the harshest operating conditions for metal expansion joints. At Ocelflex, we regularly engineer specialized designs for industries such as mining, ash handling, cement processing, dredging, and chemical slurry transport where abrasive particles pose a serious threat to bellows integrity.

Standard bellows convolutions contain deep corrugated profiles designed for flexibility. In slurry applications, heavy particulates such as fly ash, silica, ore residue, or wet solids can settle into these corrugations and gradually compact over time. Once the material hardens inside the bellows roots, the expansion joint loses its ability to flex properly.

When thermal expansion occurs in the piping system, the now-restricted bellows experiences extremely high localized stress because it cannot compress freely. This often results in deformation, tearing, fatigue cracking, or catastrophic rupture of the bellows element. Additionally, abrasive particles can continuously erode the thin-gauge metal surfaces during operation.

To prevent these failures, Ocelflex recommends heavy-duty internal liners, purgeable expansion joint designs, or externally pressurized configurations for slurry service. Proper expansion joint selection is essential to maintain flexibility, prevent clogging, and ensure reliable long-term operation in abrasive process systems.

•   Do I Need a Metal Expansion Joint for PVC or Plastic Piping?

In most cases, no. Metal expansion joints are generally not recommended for PVC, CPVC, or other plastic piping systems because the mechanical characteristics of plastic piping differ significantly from metallic piping networks. At Ocelflex, we typically recommend rubber expansion joints or PTFE expansion joints for plastic piping applications instead.

Metal bellows expansion joints possess a relatively high spring rate, meaning they require substantial compressive force to operate correctly. Steel piping systems can generate enough axial force during thermal expansion to compress the bellows effectively. Plastic piping, however, lacks the structural rigidity and column strength needed to overcome the bellows resistance.

As thermal movement occurs, the plastic pipe may buckle, deform, or crack before the metal expansion joint begins to absorb movement properly. Additionally, plastic systems are more sensitive to concentrated loads, anchor stress, and vibration transfer.

Rubber and PTFE expansion joints are much more compatible with plastic piping because they offer significantly lower spring rates and greater flexibility. They can absorb thermal expansion, vibration, and minor misalignment without imposing excessive loads on the piping system. Proper compatibility between piping material and expansion joint design is critical for safe and reliable operation.

•   What is the primary purpose of a U-loop or V-loop flexible hose?

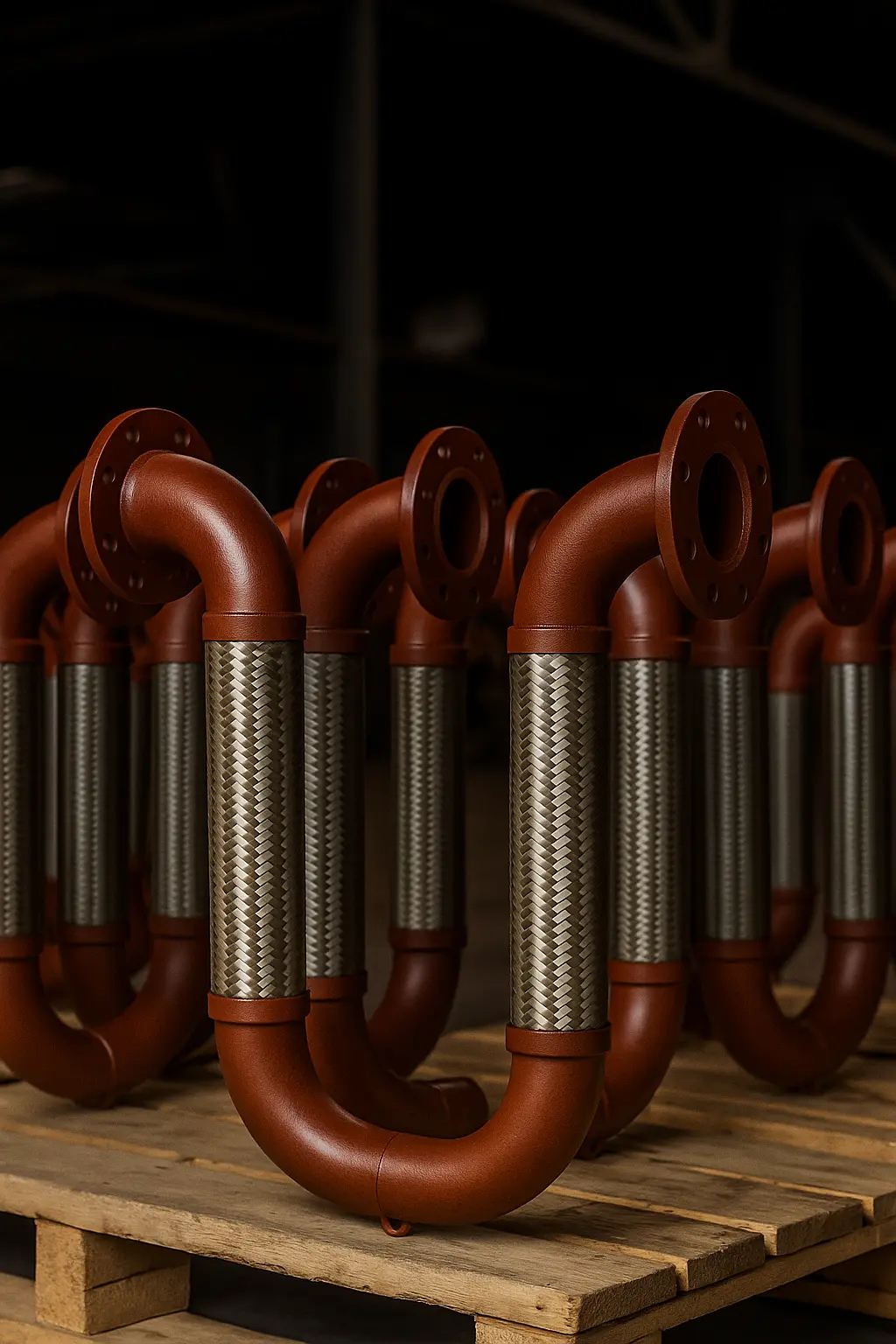

U-loops and V-loops (often called seismic loops) are highly engineered piping components designed to absorb massive amounts of unpredictable movement. While standard expansion joints handle slow thermal growth, these loops are built to protect critical infrastructure during earthquakes, extreme building settlement, or violent structural sway. They act as a hyper-flexible shock absorber, allowing the building's pipes to shift violently in all directions without snapping or breaking.Another major issue is high-velocity steam flow. Turbulent steam can create vibration, resonance, and flow-induced instability inside the bellows convolutions. Over time, these vibrations accelerate fatigue cracking and reduce service life. To combat this, engineered steam expansion joints often incorporate internal flow liners that streamline flow and protect the bellows from direct turbulence.

•   How does a V-loop absorb movement in all three planes?

A V-loop is constructed from two sections of corrugated stainless steel hose arranged in a precise "V" shape, connected by a 90-degree elbow at the apex. Because the flexible hoses are installed at an angle to the main pipe, they can simultaneously bend, compress, and extend. This geometry allows the loop to absorb massive movement in the X, Y, and Z axes (axial, lateral, and angular) simultaneously, which is exactly how buildings move during an earthquake.For most marine applications, SS 316L is considered the minimum recommended bellows material because its molybdenum content significantly improves chloride resistance. In highly aggressive environments, superior nickel-based alloys such as Inconel 625 or Monel may be required for long-term durability. But there are various other factors to consider before finalizing the material. Proper material selection, combined with protective external covers and regular inspection, greatly increases the service life of metal expansion joints operating in corrosive marine atmospheres.

•   What is the difference between a U-Type and a V-Type loop?

The difference comes down to shape and space utilization. A V-loop uses two hose legs meeting at a single 90-degree elbow. It is highly compact, drains fluids naturally, and uses fewer fittings. A U-loop uses two parallel hose legs connected by two 90-degree elbows and a straight pipe spool at the bottom. U-loops are slightly more flexible for extreme axial movements, but they take up significantly more physical footprint in crowded mechanical rooms.

•   Can I install a V-loop hanging upside down?

Yes, you can install a V-loop in almost any orientation: horizontally, vertically up, or hanging vertically down. However, orientation affects media trapping. If you are handling liquids or steam, installing it hanging downward (like a standard "V") allows gravity to naturally drain the condensate, preventing water hammer. If you install it pointing upward (like an inverted "V"), you must install an air release valve at the top apex to prevent trapped gas pockets.

•   What is "nesting" and how does it save space?

Nesting is an installation technique used when you have multiple parallel pipes running down a hallway (like hot water, chilled water, and gas lines). Instead of staggering the seismic loops down the hallway, you buy loops with slightly increasing leg lengths. You can then install them "nested" inside one another—the smallest loop on the innermost pipe, and the largest looping over the outside—saving massive amounts of premium architectural space.
