HEAVY DUTY NON METALLIC EXPANSION JOINTS FOR A PETROCHEMICAL PLANT IN VENEZUELA
PTFE Expansion Joint and PTFE Lined Rubber Expansion Joint
CLIENT REQUIREMENT
Ocelflex Industries recently completed the engineering, design, and manufacture of heavy-duty PTFE Expansion Joints for a large petrochemical processing facility in Venezuela, South America. The project involved supplying both PTFE-lined rubber expansion joints and three-convoluted pure PTFE expansion joints, tailored specifically for demanding service conditions encountered within the plant's process piping network.
The supplied assemblies comprised PTFE Expansion Joints in various diameters and PTFE Lines Rubber Expansion Joints, designed to accommodate axial and lateral movements under the following customer-specified requirements:
Design Pressure: Up to 150 psi for three-convolute PTFE expansion joints and 100 psi for PTFE-lined rubber expansion joints.
Standard Compliance: ASTM F1545.
Design Temperature: Up to 180 °C for three-convolute PTFE expansion joints and up to 55 °C for PTFE-lined rubber expansion joints.
Service Conditions: Vacuum, suction, and chemically aggressive hydrocarbon streams.
Application: Petrochemical process and transfer lines.
As specified by the client, the non metallic expansion joints were required to deliver reliable performance under continuous operating conditions, accounting for thermal cycling, pressure fluctuations, and installation tolerances typical of refinery and petrochemical environments.
OPERATIONAL CHALLENGES
High-Temperature & Pressure Variations
Chemically Aggressive Hydrocarbon Streams
Vacuum & Suction Service Conditions
Accommodating Pipe Movement
Strict Compliance with ASTM F1545
Long-Term Fatigue Life
CLIENT EXPECTATION
The client required heavy-duty PTFE expansion joints capable of withstanding high temperatures, aggressive chemicals, and vacuum conditions while maintaining flexibility to absorb pipeline movements. Absolute reliability and full compliance with ASTM F1545 were mandatory to ensure safety and longevity in their critical petrochemical process lines.
PTFE EXPANSION JOINT MANUFACTURED BY OCELFLEX

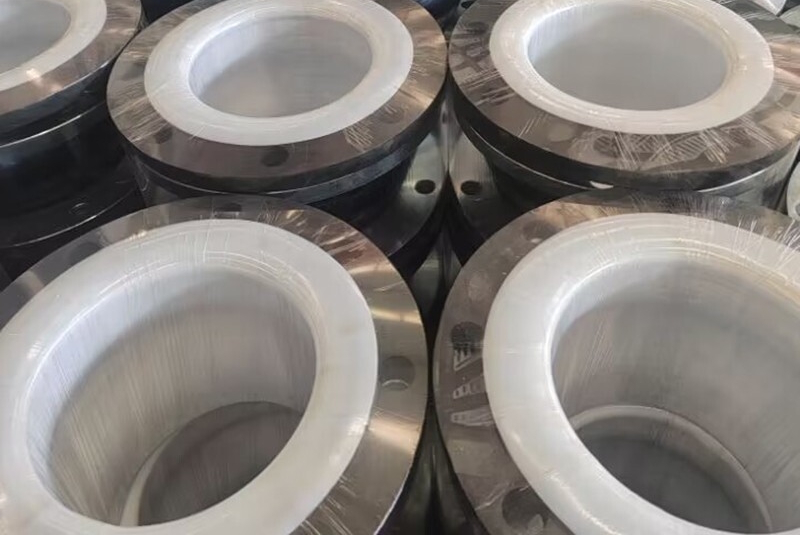

The supplied PTFE expansion joints were engineered with three convolutions to reduce spring rates and distribute stresses uniformly across the bellows, thereby enhancing fatigue life. The PTFE-lined rubber expansion joints combined the chemical resistance of PTFE with the flexibility and vibration-dampening characteristics of elastomeric bodies, making them suitable for suction lines and interfaces with rotating equipment.
TESTING AND COMPLIANCE
Each PTFE expansion joint assembly delivered to the Venezuelan petrochemical plant was individually tested and certified. Documentation included hydrostatic pressure test certificates (at 225 psi and 75 psi), 25 kV electrostatic test reports, and certificates of conformity.
All PTFE Expansion Joints confirmed compliance with ASTM F1545 — the international standard covering PTFE expansion joints for severe service conditions, fully satisfying the rigorous safety and performance requirements of the petrochemical industry.
Ocelflex's heavy-duty PTFE expansion joints have proven to be the ideal solution for the demanding requirements of high-temperature and chemically aggressive petrochemical applications. The combination of PTFE's chemical inertness, the flexibility of rubber-lined designs, and robust three-convolute construction has provided the client with a reliable, safe, and efficient system for accommodating thermal movement in their critical process piping.
