A reputed Middle East contractor required high performance Non-Metallic Expansion Joints for a Healthcare facility expansion in Saudi Arabia.

The facility's HVAC system relied on high-capacity chiller pumps and boiler units that generated significant mechanical stress. The two primary hurdles were:
Acoustic Control : Preventing chiller pump vibration from traveling through the piping into patient care areas.
Thermal Stress : Managing the expansion and contraction of the piping network connected to the heating boiler units.

The requirement was for multiple customised rubber expansion joints at multiple locations throughout the pipeline systems. The non-metallic rubber expansion joints must be engineered to mitigate vibration and handle thermal cycling in both cooling and heating circuits.

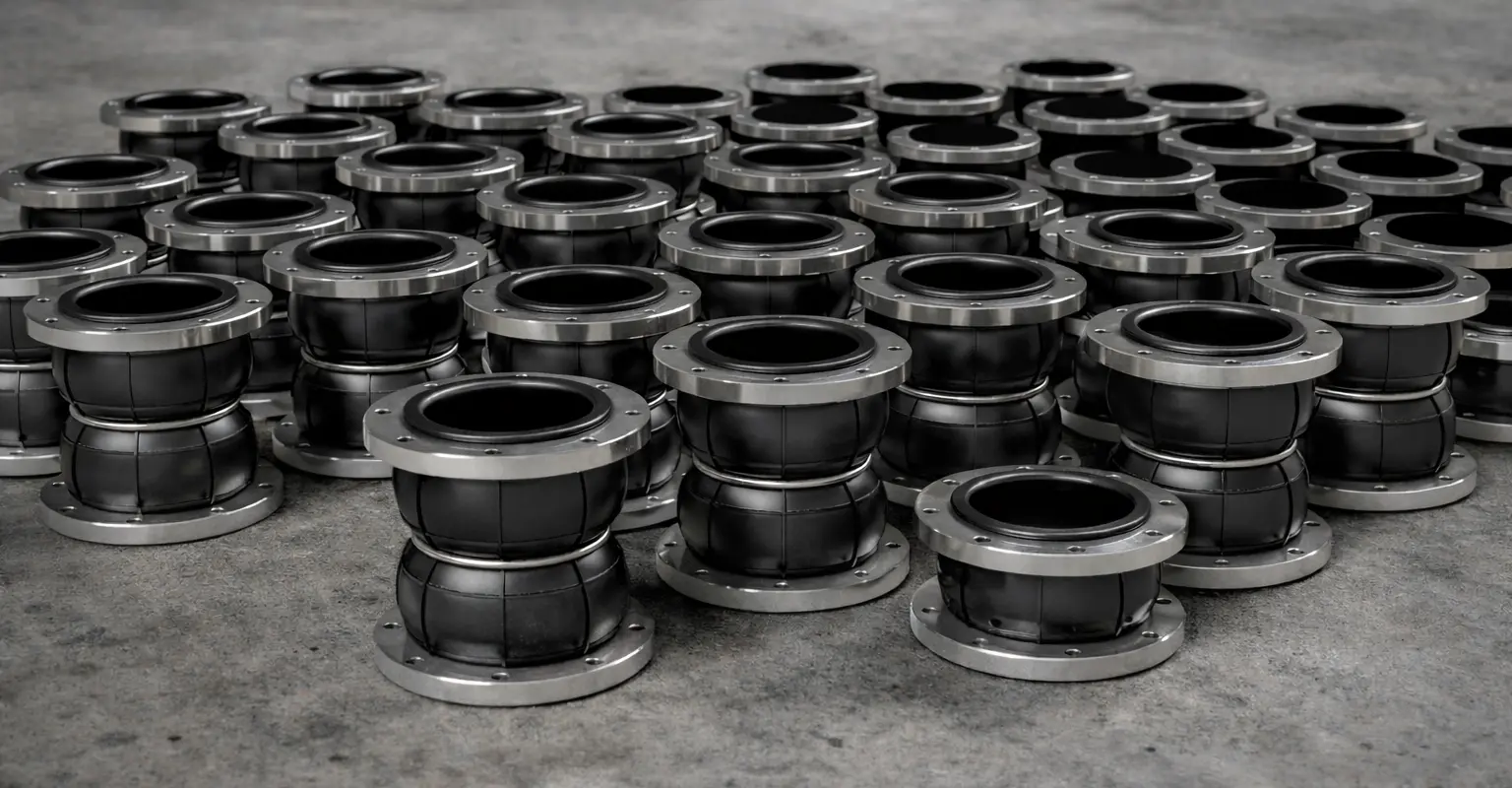

Based on our experience in executing a large-scale hospital HVAC and utility project, we designed and supplied heavy-duty EPDM Rubber Expansion Joints engineered specifically to meet stringent operational, pressure, and environmental requirements.

The solution was developed after detailed evaluation of system parameters including temperature range, static head pressure, axial movement, and suction-side conditions. The EPDM Rubber expansion joint was also designed for compatibility with Ethylene Glycol, Propylene Glycol (used for freeze protection) and Standard hydronic corrosion inhibitors used in boiler systems.

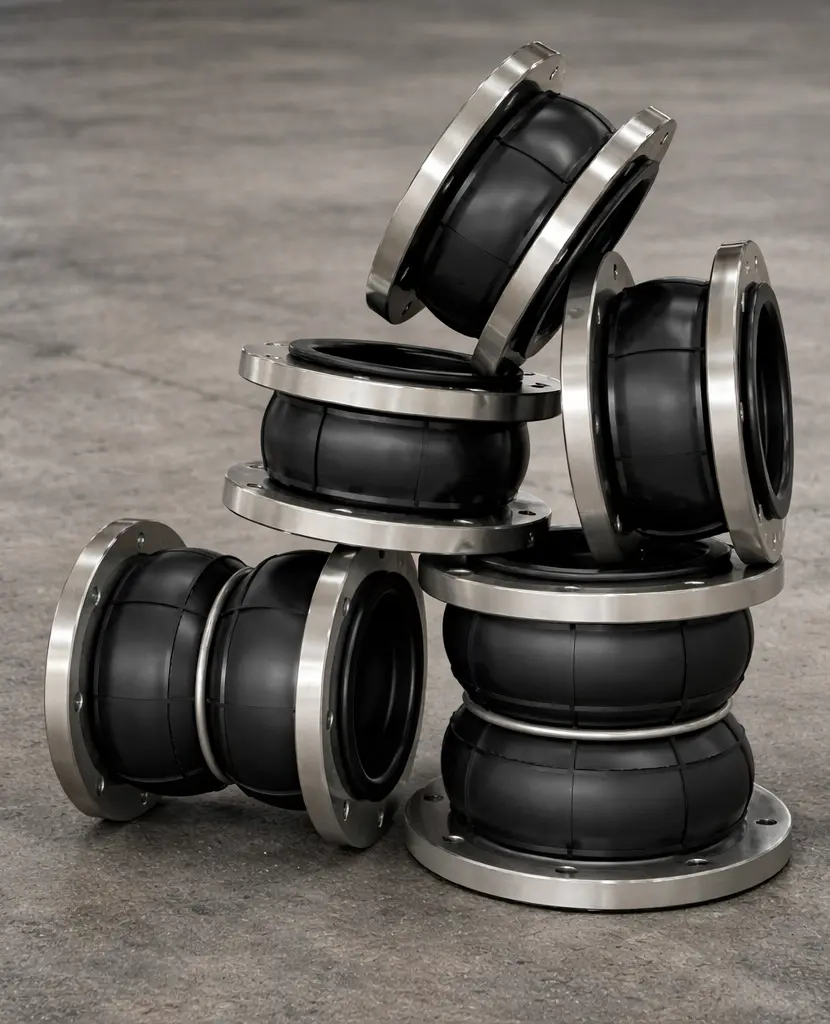

The engineered EPDM Rubber Expansion Joint – Single Arch and Double Arch design solution supplied for the hospital utility project has been operating successfully within its specified design parameters, consistently delivering effective vibration isolation, pressure integrity, and long-term mechanical reliability. The optimized rubber bellows’ arch configuration, reinforced construction, and mandatory control unit integration ensured safe operation under high static head pressures while accommodating both moderate and substantial thermal movements across chilled water and boiler systems.
