•   If the balancing bellows in a Metal Expansion Joint fails catastrophically, what are the resulting anchor forces compared to a standard mitered elbow installation?

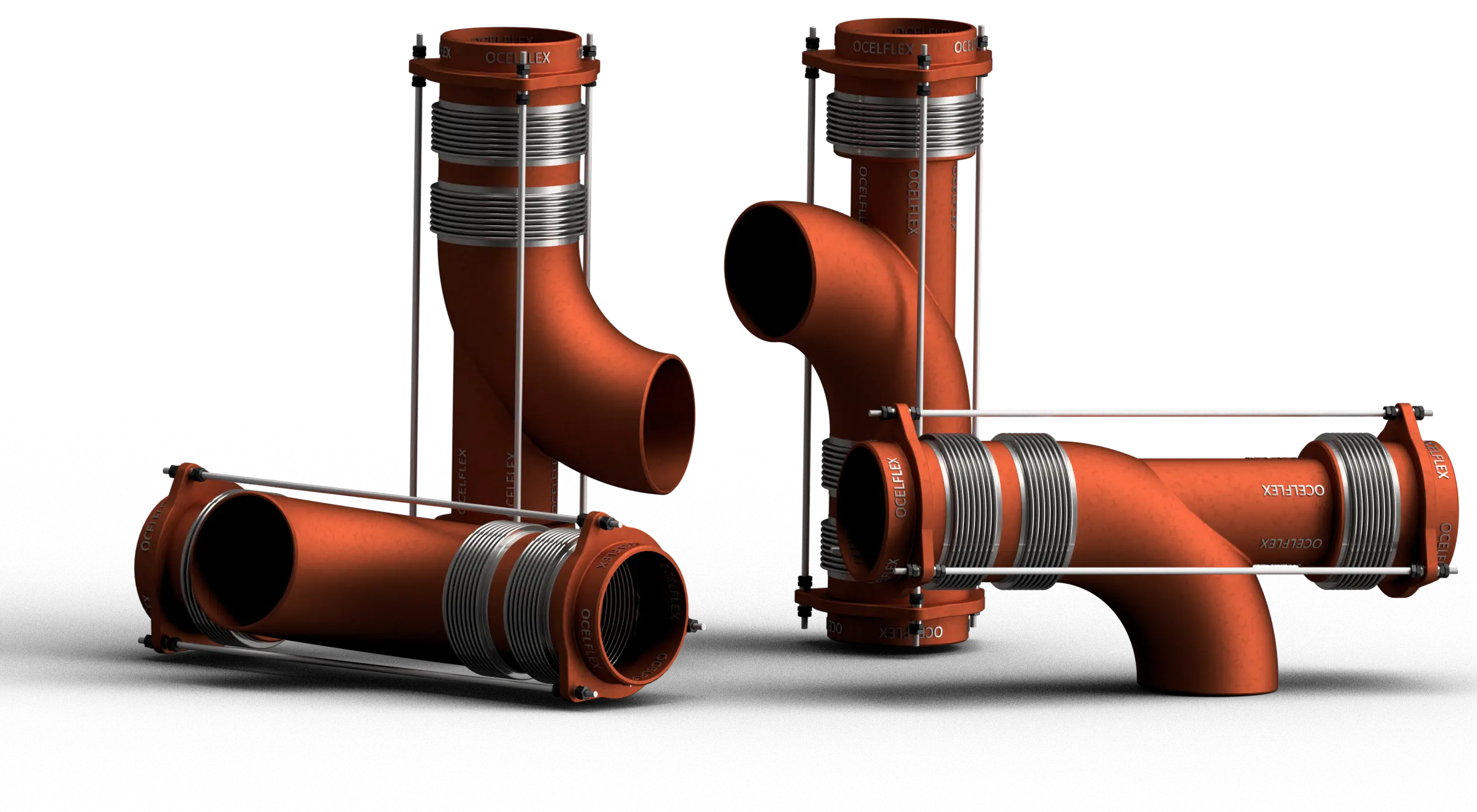

     An Elbow Pressure Balanced Metal Expansion Joint is designed to minimize the need for large main anchors by internally balancing the hydrostatic thrust during normal operation. The internal pressure thrust is safely absorbed through the tie rod assembly, preventing load transmission to adjacent piping anchors. However, in the event of a catastrophic failure—such as a rupture of the balancing Metal Expansion Bellow—the entire hydrostatic thrust ($F_p$) is suddenly released into the system. Initially, the tie rods bear the full impact of this force, but if the transient shock or pressure surge exceeds their ultimate tensile strength, they may fail. Once this occurs, the unmitigated pressure thrust is instantaneously transferred to the adjacent anchors and connected equipment, including sensitive components such as turbines or pumps. Since these typically rely on minimal anchoring under normal conditions, the resulting emergency loads can be 10 to 20 times higher than the minor spring or frictional forces those anchors are designed to handle. This sudden force transfer can lead to severe secondary damage, including flange separation, equipment deformation, or pipeline rupture. Therefore, even when using a Steel Expansion Bellow with balanced thrust characteristics, engineers must conservatively design the main anchors to handle 100% of the maximum pressure thrust as a critical safety load case.

•   Since Elbow Pressure Balanced Expansion Joint are tied universal types, how is the required guide spacing and stiffness calculation adjusted to consider the contributions of the balancing bellows and tie rods?

     Proper guiding and anchoring are essential for the reliable operation of any Metal Expansion Joint, typically following EJMA recommendations. However, the Elbow Pressure Balanced Metal Expansion Joint is structurally more complex than standard single or universal types. It incorporates dual bellows, an elbow structure, and a system of tie rods that provide both thrust restraint and structural stiffness. While the tie rods’ main purpose is to counteract the pressure thrust, they also significantly increase the overall rigidity of the joint assembly. This added stiffness modifies the effective moment of inertia ($EI_{eff}$) of the Metal Expansion Bellow assembly, which must be considered when determining guide spacing ($L_g$). Standard guide formulas cannot be directly applied; these must instead be treated as a reinforced structural beam with higher stiffness compared to a simple pipe span. Intermediate guides must be designed to accommodate the combined reactive forces arising from both the line and balancing Steel Expansion Bellows, in addition to friction within the tie rods and hinge mechanisms. Accurate stress analysis therefore requires a multi-component stiffness model rather than a simplified pipe-based approach, ensuring both column stability and dynamic reliability in the installed system.

•   In a multi-plane system, what is the design trade-off between an Elbow Pressure Balanced Expansion Joint’s ability to absorb axial movement and its restriction against angular or torsional rotation?

     The Elbow Pressure Balanced Metal Expansion Joint is primarily designed to absorb axial movement and moderate lateral deflection along the pipeline axis. Its performance depends heavily on the structural rigidity of the tie rod assembly, which transmits forces precisely along the axis to maintain internal pressure balance. This necessary rigidity, however, imposes significant constraints on angular or torsional flexibility in perpendicular planes. In multi-plane piping systems where unintended thermal expansion causes rotational or twisting motion, the Metal Expansion Bellow may experience excessive bending or torsional stress. These moments concentrate at the bellows necks and tie rod connection points, potentially leading to fatigue cracks or mechanical failure if the allowable design limits are exceeded. The key trade-off is clear: achieving maximum thrust balance through rigidity inherently limits angular flexibility. Engineers must ensure the elbow pressure balanced metal expansion joint is installed in a section where movement occurs predominantly in its designed axial or lateral directions. If multidirectional rotation or torsion cannot be avoided, a more flexible configuration—such as a gimbaled Metal Expansion Joint—should be selected to maintain long-term mechanical reliability.

•   What is the impact of negligible volume change during deflection in systems using non-compressible fluids, and why is this critical in Elbow Pressure Balanced Metal Expansion Joint design?

     A distinctive advantage of the Pressure Balanced Metal Expansion Joint design is its “no volume change” characteristic. As the line bellows compresses, the balancing bellows extends by an equal amount, ensuring that the total internal volume remains constant. In systems handling compressible fluids such as gases, small volume variations are easily absorbed through density changes. However, in closed-loop systems containing non-compressible fluids—like hydraulic oils or glycol-based coolants—even minor volume fluctuations can cause significant pressure spikes due to the fluid’s high bulk modulus. Because the Metal Expansion Bellow in an Elbow Pressure Balanced Expansion Joint maintains near-zero volumetric displacement throughout its operation, it effectively eliminates these harmful transients. This stability is crucial in high-pressure hydraulic and precision fluid-control systems, where sudden pressure surges could otherwise damage seals, valves, or sensitive instrumentation. The negligible volume change feature of the Steel Expansion Bellow ensures smooth, predictable operation under all thermal and pressure variations.

•   What specialized metallurgical and liner design considerations are required for Elbow Pressure Balanced Metal Expansion Joint operating in high-flow or erosive slurry environments?

     Material selection for any Metal Expansion Joint follows the STAMP principles — strength, temperature, application, media, and pressure — to ensure long-term durability. However, in high-velocity or erosive flow applications such as mineral slurries, flue gas systems, or ash-laden ducts, the thin-walled Metal Expansion Bellows face significant wear and abrasion risks. To protect these critical components, a robust internal flow liner is installed. The liner shields the Steel Expansion Bellow convolutions from direct particle impact, reduces turbulence, and minimizes erosion. In standard conditions, the liner material matches the base piping; but in highly abrasive services, it must be upgraded to harder materials such as ceramic-lined steel or chrome-plated alloys. If erosion wears down the bellows wall thickness, it can severely reduce the design life and lower the critical buckling pressure ($P_{cr}$). Therefore, the liner must not only match the corrosion resistance of the bellows but exceed it in hardness and wear resistance. Proper metallurgical selection and liner attachment methods are vital to ensure reliable performance and extended fatigue life of the Metal Expansion Joint in demanding, abrasive service environments.
