•    In which specific piping configurations do universal joints offer the most advantageous solution?

    Universal expansion joints are specifically engineered for piping systems that demand greater flexibility across multiple directions. They are ideally suited for:

    Large Lateral Offsets: Applications involving long pipeline runs or major directional transitions, where substantial lateral movement must be accommodated without inducing stress on adjacent equipment or anchors.

    Three-Dimensional (3D) Thermal Movement: Systems experiencing simultaneous displacement along multiple axes (X, Y, and Z) due to thermal expansion and contraction.

  Low-Pressure or Exhaust Systems: In low-pressure ducting or exhaust applications, unrestrained universal expansion joints are preferred, as the minimal pressure thrust eliminates the requirement for main anchors, reducing installation complexity and cost.

•   Why is a universal expansion joint typically considered a low-pressure solution when unrestrained?

    When unrestrained, the universal joint's two bellows elements create a large effective pressure area. This results in a massive pressure thrust force that must be absorbed by the main anchors. Due to the high cost and structural demands of installing anchors strong enough to withstand high-pressure thrust, the unrestrained universal joint is typically reserved for low-pressure or vacuum applications where the forces are manageable.

•   What are the common failure modes unique to universal expansion joints?

The most common unique failure modes are:     Over-Angulation: The failure to correctly distribute movement, causing one bellows to angulate beyond its limit while the other is under-utilized.     Sustained Squirm: A unique instability failure where the thin-walled bellows buckles or collapses due to excessive internal pressure combined with high axial or lateral deflection.     Tie Rod Failure: In tied units, improper torquing or fatigue failure of the tie rods can instantly transfer full pressure thrust to the adjacent pipe supports, often leading to anchor failure.

•   How does the length of the center spool piece mathematically influence the spring rate of the universal expansion joint?

The lateral stiffness (spring rate) of a universal joint is approximately inversely proportional to the square of the center spool piece length (L).

K_Lateral ∝ 1 L²

    A longer spool piece drastically lowers the lateral spring rate, making the joint softer and capable of absorbing larger lateral movements with lower reaction loads on the piping, but at the cost of a longer installation length.

•   How is the required cycle life calculated and combined for the two bellows elements in a universal joint?

    At Ocelflex, with over 30 years of expertise in delivering flexible solutions to the industrial sector, we have made significant investments in automating our production of expansion joints and expansion bellows. As a leading manufacturer of metal expansion joints, we are committed to precision, quality, and reliability.

    We have developed proprietary software that accurately calculates all critical parameters required to design high-performance expansion joints. This ensures that every expansion bellow we produce is engineered for optimal movement absorption, pressure resistance, and durability.

    To maintain exacting standards, our manufacturing facility is equipped with advanced automated forming, rolling, and welding machines. These machines ensure that every metal expansion joint strictly adheres to the design specifications, minimizing variations and guaranteeing consistent product quality.

    In addition, we have integrated a customized ERP solution that provides complete traceability for each expansion joint, from the raw material stage to the finished product. Our ERP system is aligned with ISO 9001 quality management standards, ensuring rigorous quality checks at every stage of production.


    Every expansion joint manufactured by Ocelflex is crafted with the highest attention to detail, designed for longevity, operational safety, and to meet the critical demands of your industrial piping systems.

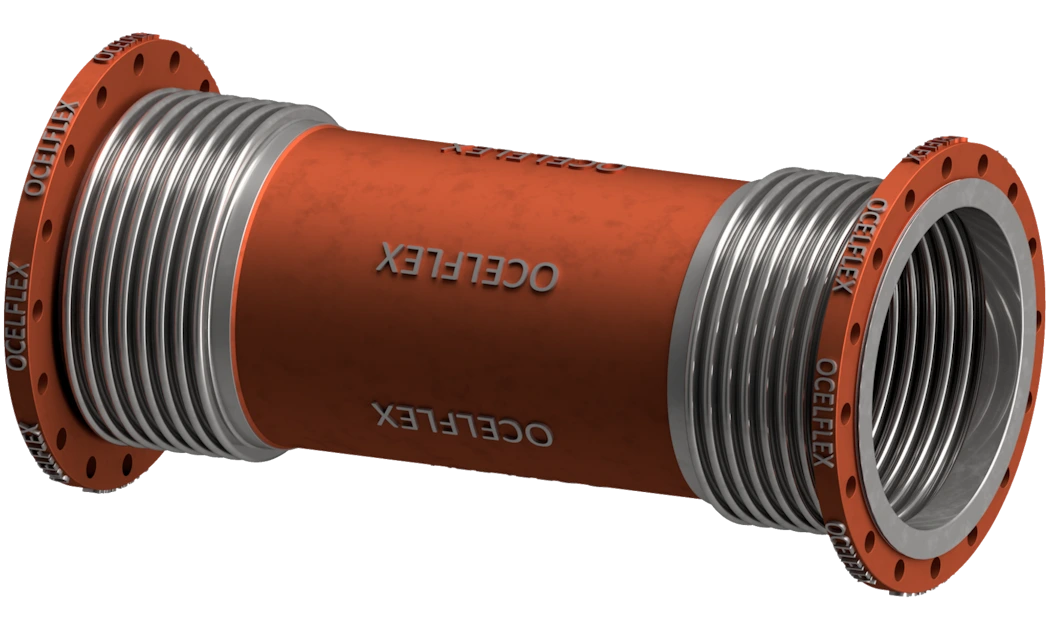

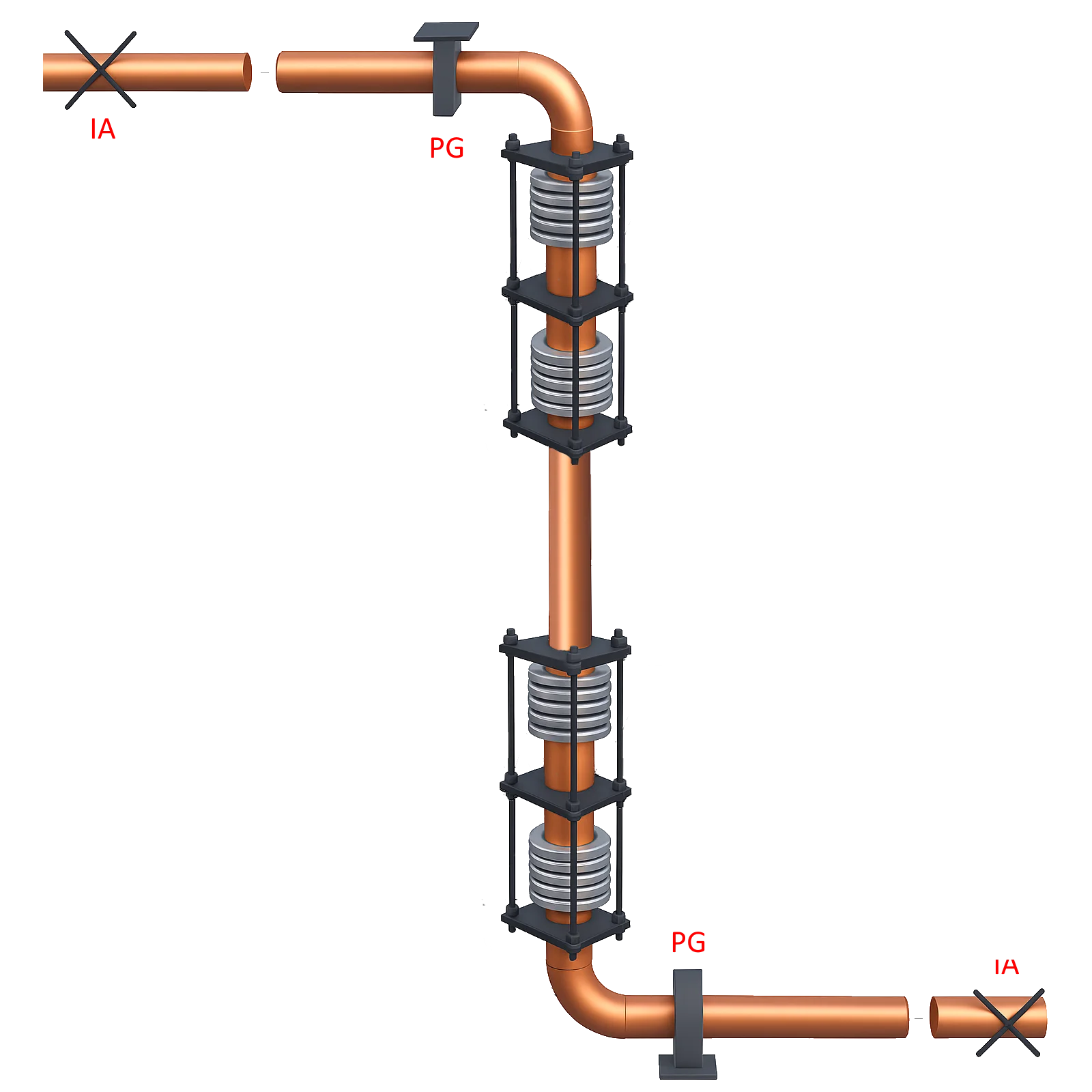

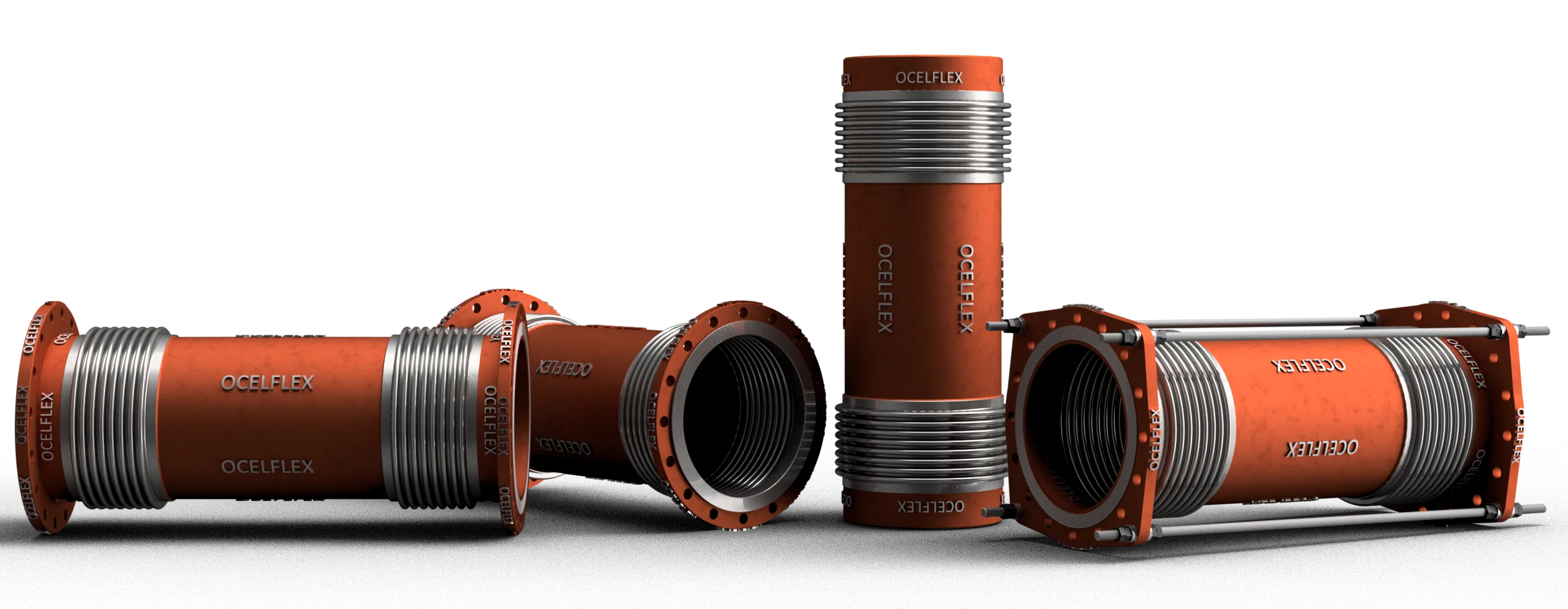

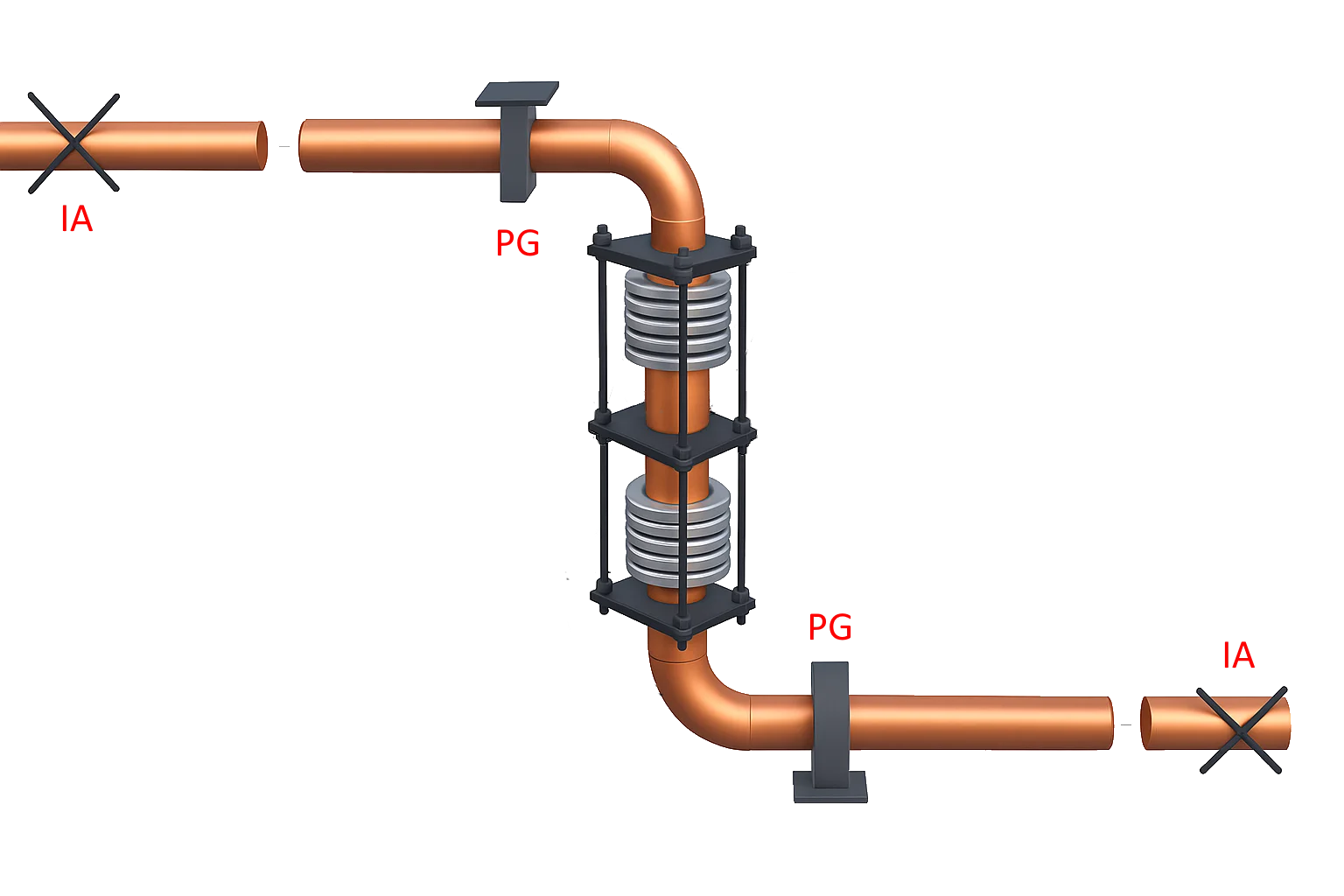

•   What is the minimum recommended guide spacing adjacent to a universal expansion joint assembly?

    The first pipe guide adjacent to the universal joint flange should be installed at a maximum distance of 4 x D (four times the nominal pipe diameter) from the expansion joint. The second guide must be installed at a maximum distance of 14 x D from the first guide. This close, mandatory guidance is critical to prevent the flexible assembly from buckling or twisting under pressure and internal load moments.
